Complete Home Networking Guide: Build, Secure, and Optimize Your Network

What You'll Master

• Networking fundamentals - How data flows through your network
• Hardware selection - Choose the right router, switch, and access points
• Network setup and configuration - Build your network from scratch
• Wi-Fi optimization - Get maximum speed and coverage
• Network security - Protect against threats and unauthorized access
• Troubleshooting - Diagnose and fix common network problems
• Advanced topics - VLANs, port forwarding, QoS, and more
• Future-proofing - Prepare for new devices and technologies

Difficulty: ⭐ Beginner to ⭐⭐⭐ Intermediate | Time: 2-8 hours depending on complexity

Part 1: Networking Fundamentals

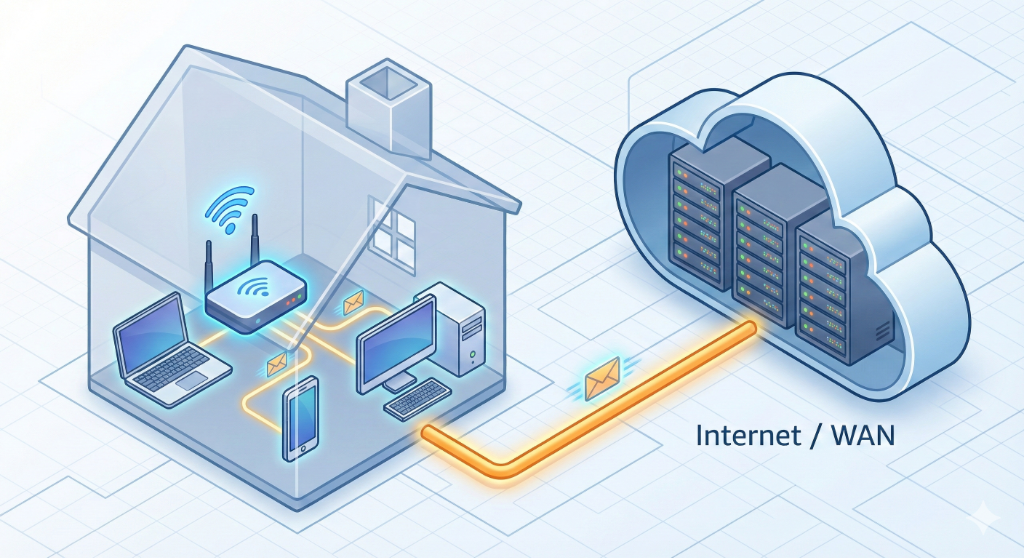

Understanding Network Scale

LAN (Local Area Network) Your home network bubble - all devices connected to your router. Fast, private, and under your control.

WAN (Wide Area Network)
Everything beyond your home, including the internet. Your ISP provides WAN connectivity.

Internet The global network of networks. When you visit websites or stream videos, you're using the internet.

How Data Travels: The Journey of a Web Request

Step-by-step breakdown:

1. You type google.com in your browser
2. DNS lookup - Your router asks "What's Google's IP address?"
3. Routing - Your router finds the best path to Google's servers
4. Request sent - Data travels through your ISP to Google
5. Response received - Google sends the webpage back
6. Display - Your browser renders the page

Key insight: This happens in milliseconds across thousands of miles!

Network Protocols: The Languages Devices Speak

TCP/IP (Transmission Control Protocol/Internet Protocol) The fundamental language of networks. Like how humans need common languages to communicate.

HTTP/HTTPS (HyperText Transfer Protocol) How web browsers talk to websites. HTTPS adds encryption for security.

DHCP (Dynamic Host Configuration Protocol) Automatically assigns IP addresses to devices joining your network.

DNS (Domain Name System) Translates human-readable names (google.com) to computer addresses (172.217.7.238).

Understanding IP Addresses

IPv4 addresses (most common):

• Format: 192.168.1.100
• Private ranges: 192.168.x.x, 10.x.x.x, 172.16-31.x.x
• Public addresses: Assigned by your ISP

IPv6 addresses (newer standard):

• Format: 2001:0db8:85a3:0000:0000:8a2e:0370:7334
• Virtually unlimited addresses
• Gradually replacing IPv4

Static vs. Dynamic IP addresses:

• Static: Never changes, good for servers
• Dynamic: Changes periodically, typical for home devices

Part 2: Network Hardware Deep Dive

Router: Your Network's Brain

What it does:

• Routes traffic between your LAN and the internet
• Assigns IP addresses to devices (DHCP)
• Provides firewall protection
• Often includes Wi-Fi and switch functions

Router buying guide:

Budget routers ($50-100):

• Good for: Small homes, basic usage
• Speed: AC1200-AC1750
• Coverage: 1,500 sq ft
• Example: TP-Link Archer A7

Mid-range routers ($100-200):

• Good for: Most homes, multiple users
• Speed: AC2600-AX3200
• Coverage: 2,500 sq ft
• Example: ASUS AX3000, Netgear Nighthawk AX6

High-end routers ($200-400):

• Good for: Large homes, power users
• Speed: AX6000+
• Coverage: 3,500+ sq ft
• Features: Gaming optimization, advanced security
• Example: ASUS AX6000, Netgear Nighthawk Pro Gaming

Enterprise/enthusiast ($400+):

• Good for: Home labs, maximum performance
• Features: Advanced management, multiple radios
• Example: Ubiquiti Dream Machine Pro

Switches: Expanding Wired Connections

What switches do:

• Provide additional Ethernet ports
• Create fast, reliable wired connections
• Learn device locations for efficient traffic forwarding

When you need a switch:

• More wired devices than router ports
• Want gigabit speeds for media streaming
• Building a home lab or office setup

Switch types:

Unmanaged switches ($20-60):

• Plug and play
• Basic port expansion
• Good for: Home use, simple setups

Managed switches ($80-300+):

• VLAN support
• Advanced configuration options
• Traffic monitoring and control
• Good for: Advanced users, business use

Key specifications:

• Port count: 5, 8, 16, 24, 48 ports
• Speed: 10/100 Mbps (old), Gigabit (1000 Mbps), or faster
• Power: Some switches provide PoE (Power over Ethernet)

Access Points: Extending Wi-Fi Coverage

When to use access points:

• Large homes with Wi-Fi dead zones
• Need Wi-Fi in areas far from router
• Want multiple Wi-Fi networks
• Upgrading from old router with poor Wi-Fi

Access point vs. mesh systems:

Access Points:

• Single units that extend coverage
• Connect via Ethernet cable
• More reliable, faster speeds
• Require technical setup

Mesh Systems:

• Multiple units that create seamless coverage
• Connect wirelessly (usually)
• Easy setup and management
• Good for non-technical users

Cable Types and When to Use Each

Ethernet cables:

Cat5e:

• Speed: Up to 1 Gbps
• Distance: 100 meters max
• Good for: Basic internet, older devices

Cat6:

• Speed: Up to 1 Gbps (10 Gbps short distances)
• Better shielding than Cat5e
• Good for: Most home networking

Cat6a:

• Speed: Up to 10 Gbps
• Distance: 100 meters at full speed
• Good for: Future-proofing, high-performance

Fiber optic:

• Speed: 10 Gbps to 100+ Gbps
• Distance: Much longer than copper
• Good for: ISP connections, long runs

Part 3: Wi-Fi Technology and Optimization

Wi-Fi Standards Explained

Wi-Fi naming evolution:

• 802.11n = Wi-Fi 4
• 802.11ac = Wi-Fi 5
• 802.11ax = Wi-Fi 6
• 802.11be = Wi-Fi 7 (coming soon)

Wi-Fi 6 (802.11ax) benefits:

• Faster speeds: Up to 9.6 Gbps theoretical
• Better efficiency: Handles more devices simultaneously
• Lower latency: Better for gaming and video calls
• Improved battery life: Target Wake Time feature

Wi-Fi frequency bands:

2.4 GHz band:

• Pros: Longer range, better wall penetration
• Cons: Slower speeds, more interference
• Best for: IoT devices, long-range connections

5 GHz band:

• Pros: Faster speeds, less crowded
• Cons: Shorter range, doesn't penetrate walls well
• Best for: Streaming, gaming, high-bandwidth activities

6 GHz band (Wi-Fi 6E/7):

• Pros: Fastest speeds, least congested
• Cons: Very short range, new technology
• Best for: Cutting-edge applications

Wi-Fi Network Design

Optimal router placement:

• Central location in your home
• Elevated position (shelf, wall mount)
• Away from interference (microwaves, baby monitors)
• Away from walls and metal objects

Understanding Wi-Fi coverage:

• Signal strength measured in dBm (-30 excellent, -70 poor)
• Throughput decreases with distance and obstacles
• 2.4 GHz travels further but slower
• 5 GHz faster but shorter range

Dealing with interference:

• Channel selection - Use 1, 6, or 11 on 2.4 GHz
• Width settings - 20 MHz for range, 40-80 MHz for speed
• Power settings - Don't always use maximum power

Mesh Networking Systems

How mesh networks work:

• Multiple nodes create overlapping coverage
• Devices automatically connect to best node
• Single network name (SSID) for seamless roaming
• Self-healing if one node fails

Popular mesh systems:

Budget mesh ($100-200):

• TP-Link Deco M4, Amazon Eero 6
• Good for: Basic coverage extension

Mid-range mesh ($200-400):

• Netgear Orbi RBK50, ASUS ZenWiFi AX6600
• Good for: Most homes, good performance

High-end mesh ($400-800):

• Netgear Orbi Pro, ASUS ZenWiFi Pro 6E
• Good for: Large homes, maximum performance

Mesh vs. traditional setup:

• Mesh: Easier setup, seamless roaming, good for non-technical users
• Traditional: More control, better performance, lower cost

Part 4: Network Security Essentials

Router Security Configuration

Change default credentials:

Default: admin/admin or admin/password
Change to: Strong unique password

Firmware updates:

• Enable automatic updates if available
• Check manufacturer website monthly
• Critical for security patches

Wi-Fi security settings:

• Use WPA3 (or WPA2 if WPA3 unavailable)
• Strong password: 12+ characters, mix of types
• Hide SSID: Optional, provides minimal security
• MAC filtering: More trouble than benefit for home use

Advanced security features:

• Guest network: Separate network for visitors
• Access control: Time-based internet access
• VPN server: Built-in VPN for remote access
• Firewall rules: Block specific traffic or ports

Network Monitoring and Management

Monitor connected devices:

• Regular review of connected device list
• Remove unknown or unused devices
• Note MAC addresses of your devices

Bandwidth monitoring:

• Identify devices using excessive bandwidth
• Set up QoS (Quality of Service) rules
• Monitor for suspicious activity

Parental controls:

• Time-based internet access
• Content filtering
• Device-specific rules
• Usage reporting

Advanced Security Measures

Network segmentation:

• Main network: Computers and phones
• IoT network: Smart home devices
• Guest network: Visitors
• Work network: Work devices (if working from home)

VPN setup:

• Use router's built-in VPN server
• Or set up separate VPN server (see our VPN guide)
• Access home network securely while traveling

DNS filtering:

• Use secure DNS providers (Cloudflare, Quad9)
• Set up Pi-hole for network-wide ad blocking (see our Pi-hole guide)
• Block malicious domains automatically

Part 5: Performance Optimization

Speed Testing and Benchmarking

Test internet speed:

• Use speedtest.net or fast.com
• Test wired vs. wireless speeds
• Test at different times of day
• Compare with ISP advertised speeds

Internal network testing:

• Transfer large files between devices
• Use iperf3 for network performance testing
• Test different cable types and lengths

Wi-Fi analysis tools:

• WiFi Analyzer (Android) - See nearby networks
• WiFi Explorer (Mac) - Detailed wireless analysis
• Wireshark - Advanced network packet analysis

Optimizing Network Performance

QoS (Quality of Service) configuration:

• Prioritize important traffic (video calls, gaming)
• Limit bandwidth for specific devices or applications
• Set upload/download limits

Channel optimization:

• 2.4 GHz: Use channels 1, 6, or 11
• 5 GHz: Use DFS channels if available
• Use Wi-Fi analyzer to find least congested channels

Bandwidth management:

• Allocate bandwidth based on device importance
• Set limits for streaming devices
• Prioritize work-from-home applications

Cable Management and Organization

Structured cabling:

• Plan cable runs before installation
• Use cable management hardware
• Label all cables for easy identification
• Keep power and data cables separated

Patch panels and wall jacks:

• Professional installation for new homes
• Retrofit existing homes with surface-mount solutions
• Central wiring closet for all network equipment

Part 6: Troubleshooting Network Issues

Systematic Troubleshooting Approach

Step 1: Define the problem

• Is it affecting one device or all devices?
• Internet connectivity or local network issue?
• Intermittent or constant problem?
• When did it start?

Step 2: Check physical connections

• Are cables plugged in securely?
• Are link lights showing on network equipment?
• Try different cables or ports
• Check power connections

Step 3: Test connectivity

• Can you ping the router? ping 192.168.1.1
• Can you ping external sites? ping 8.8.8.8
• Can you resolve DNS? nslookup google.com

Common Problems and Solutions

No internet connection:

Check list:

• [ ] Modem/router powered on?
• [ ] All cables connected?
• [ ] ISP outage in your area?
• [ ] Try rebooting modem and router
• [ ] Check with another device

Slow internet speeds:

Troubleshooting:

• Test speed with wired connection
• Check for background downloads/updates
• Scan for malware
• Contact ISP if speeds consistently below advertised
• Consider upgrading internet plan

Wi-Fi connectivity issues:

Solutions:

• Restart Wi-Fi on device
• Forget and reconnect to network
• Check for interference (baby monitors, microwaves)
• Update device Wi-Fi drivers
• Try different Wi-Fi channel

Intermittent connectivity:

Potential causes:

• Overheating network equipment
• Loose cable connections
• ISP infrastructure issues
• Interference from other devices
• Failing network hardware

Network Diagnostic Tools

Built-in tools:

Windows:

• ipconfig - Check IP address configuration
• ping - Test connectivity to devices
• tracert - Show path to destination
• nslookup - Test DNS resolution

Mac/Linux:

• ifconfig - Network interface configuration
• ping - Test connectivity
• traceroute - Show network path
• dig - Advanced DNS lookup

Third-party tools:

• WiFi Analyzer - Analyze wireless networks
• LanScan - Discover devices on network
• Wireshark - Deep packet inspection
• PingPlotter - Long-term connectivity monitoring

Part 7: Advanced Networking Topics

VLANs (Virtual Local Area Networks)

What VLANs do:

• Segment network traffic logically
• Improve security and performance
• Reduce broadcast domains
• Enable advanced network policies

VLAN use cases:

• Guest network isolation
• IoT device separation
• Work from home segmentation
• Gaming network optimization

VLAN configuration example:

• VLAN 1: Management (router, switches)
• VLAN 10: Computers and phones
• VLAN 20: IoT devices
• VLAN 30: Guest network

Port Forwarding and NAT

Network Address Translation (NAT):

• Allows multiple devices to share one public IP
• Provides basic firewall protection
• Hides internal network structure

Port forwarding use cases:

• Web server hosting
• Gaming server hosting
• Remote desktop access
• IP camera access
• Self-hosted services (see our NAS guide)

Security considerations:

• Only forward necessary ports
• Use non-standard ports when possible
• Implement additional security measures
• Consider VPN instead of port forwarding

Quality of Service (QoS)

QoS strategies:

• Traffic shaping - Limit bandwidth usage
• Traffic prioritization - Important traffic first
• Traffic classification - Identify application types

QoS configuration:

• Set total upload/download bandwidth
• Classify devices and applications
• Set priority levels (high, medium, low)
• Monitor and adjust based on usage

Network Attached Storage (NAS)

Benefits of network storage:

• Centralized file storage
• Automatic backups
• Media streaming
• Remote file access

NAS options:

• Commercial NAS (Synology, QNAP)
• DIY NAS (FreeNAS, unRAID)
• Raspberry Pi NAS (see our NAS guide)

Part 8: Home Lab and Advanced Projects

Building Your First Home Lab

Home lab benefits:

• Learn networking concepts hands-on
• Test software and configurations safely
• Develop IT skills
• Host your own services

Basic home lab setup:

• Dedicated computer/server
• Managed switch for VLANs
• Multiple network segments
• Virtualization software (VMware, Proxmox)

Home lab project ideas:

• Pi-hole for network-wide ad blocking
• VPN server for secure remote access
• Media server (Plex, Jellyfin)
• Home automation (Home Assistant)
• Network monitoring (PRTG, LibreNMS)

Virtualization and Containers

Virtual machines:

• Run multiple operating systems on one computer
• Isolated environments for testing
• Easy backup and recovery
• Popular platforms: VMware ESXi, Proxmox

Containers:

• Lightweight alternative to VMs
• Docker for application deployment
• Kubernetes for container orchestration
• Perfect for microservices architecture

Network Monitoring and Management

Why monitor your network:

• Identify performance issues
• Track bandwidth usage
• Detect security threats
• Plan for capacity upgrades

Monitoring tools:

• PRTG - Comprehensive network monitoring
• LibreNMS - Open source monitoring
• Nagios - Infrastructure monitoring
• Pi-based solutions - Raspberry Pi monitoring systems

Part 9: Future-Proofing Your Network

Emerging Technologies

Wi-Fi 7 (802.11be):

• 46 Gbps theoretical speeds
• Multi-link operation
• Better efficiency in dense environments
• Expected mainstream adoption soon

Matter/Thread:

• Universal smart home standard
• Better device interoperability
• Mesh networking for IoT devices
• Industry-wide support

10 Gigabit Ethernet:

• 10x faster than current gigabit
• Becoming more affordable
• Essential for high-end home labs
• Future-proofs for 8K streaming

Planning for Growth

Capacity planning:

• Estimate future device count
• Plan for bandwidth growth
• Consider new applications (VR, 8K streaming)
• Prepare infrastructure for upgrades

Scalability considerations:

• Choose equipment with upgrade paths
• Plan structured cabling for expansion
• Document network configuration
• Regular equipment refresh cycles

Part 10: Buying Guide and Recommendations

Router Recommendations by Use Case

Small apartment/basic use:

• Budget: TP-Link Archer A7 ($60)
• Better: ASUS AX1800 ($90)
• Covers: 1,500 sq ft, 10-15 devices

Medium home/family:

• Good: Netgear AX3200 ($150)
• Better: ASUS AX5700 ($200)
• Covers: 2,500 sq ft, 20-30 devices

Large home/power user:

• Good: Netgear AX6000 ($300)
• Best: ASUS AX6000 ($350)
• Covers: 3,500+ sq ft, 40+ devices

Enthusiast/home lab:

• Ubiquiti Dream Machine ($400)
• pfSense box + Unifi APs ($500+)
• Professional features and management

Mesh System Recommendations

Budget mesh:

• Amazon Eero 6 (3-pack, $200)
• TP-Link Deco M4 (3-pack, $150)

Mid-range mesh:

• Netgear Orbi RBK753 (3-pack, $400)
• ASUS ZenWiFi AX6600 (2-pack, $350)

High-end mesh:

• Netgear Orbi Pro 6E (3-pack, $700)
• Ubiquiti UniFi (enterprise-grade)

Switch Recommendations

Basic unmanaged:

• Netgear GS105 (5-port, $25)
• TP-Link TL-SG108 (8-port, $35)

Advanced managed:

• Netgear GS108T (8-port smart, $60)
• Ubiquiti Switch Lite 16 (16-port, $200)

When to Upgrade Your Network

Signs you need an upgrade:

• Frequent connectivity issues
• Slow internet speeds (vs. what you pay for)
• Wi-Fi dead zones in your home
• Router is 5+ years old
• Adding many new devices (smart home)
• Working from home requirements

Upgrade priorities:

1. Router - Biggest impact on performance
2. Internet plan - If router upgrade doesn't help
3. Mesh system - For coverage issues
4. Wired infrastructure - For maximum performance

Network Security Checklist

Essential Security Setup

• [ ] Change router admin password
• [ ] Update router firmware
• [ ] Enable WPA3 (or WPA2) with strong password
• [ ] Set up guest network
• [ ] Disable WPS
• [ ] Change default SSID name
• [ ] Enable firewall
• [ ] Disable remote management (unless needed)
• [ ] Review connected devices regularly

Advanced Security

• [ ] Set up VPN server for remote access
• [ ] Configure network segmentation (VLANs)
• [ ] Install Pi-hole for DNS filtering
• [ ] Enable router logging
• [ ] Set up network monitoring
• [ ] Implement access control policies
• [ ] Regular security audits

Troubleshooting Quick Reference

No Internet Connection

1. Check physical connections
2. Restart modem and router (in order)
3. Test with ethernet connection
4. Check for ISP outages
5. Contact ISP if problem persists

Slow Speeds

1. Test speed with wired connection
2. Check for background downloads
3. Scan for malware
4. Restart network equipment
5. Contact ISP if speeds don't match plan

Wi-Fi Issues

1. Restart device Wi-Fi
2. Move closer to router
3. Check for interference
4. Try different Wi-Fi channel
5. Update device drivers

Can't Connect to Specific Sites

1. Try different device
2. Check DNS settings
3. Try different DNS server (8.8.8.8)
4. Check router firewall settings
5. Contact site administrator

Frequently Asked Questions

What internet speed do I need?

For most homes: 100-300 Mbps download, 10-20 Mbps upload Light use (1-2 people): 25-50 Mbps Heavy use (4+ people, streaming, gaming): 200-500 Mbps Work from home: Consider upload speed for video calls

Should I use mesh or a traditional router?

Mesh systems are better for:

• Large homes with coverage issues
• Non-technical users
• Seamless roaming between areas

Traditional routers are better for:

• Maximum performance in single location
• Advanced configuration control
• Budget-conscious buyers
• Technical users

How often should I restart my router?

Monthly restarts help with stability and performance. Set a reminder or use a smart outlet to automate weekly reboots during low-usage times.

Is ethernet faster than Wi-Fi?

Yes, always. Ethernet provides:

• Faster speeds (1+ Gbps vs 100-500 Mbps Wi-Fi)
• Lower latency (better for gaming)
• More reliable connection
• Better for bandwidth-intensive activities

How can I extend Wi-Fi range?

Options in order of effectiveness:

1. Reposition router to central, elevated location
2. Upgrade to higher-power router
3. Add mesh nodes or range extenders
4. Install additional access points via ethernet
5. Use powerline adapters if ethernet impossible

What's the difference between 2.4GHz and 5GHz?

2.4 GHz: Longer range, slower speeds, more interference 5 GHz: Shorter range, faster speeds, less congested Modern devices automatically choose the best band

Do I need a gaming router?

Gaming routers provide:

• Lower latency (ping) optimization
• QoS for gaming traffic prioritization
• Multiple processors for consistent performance Worth it if: You're a serious gamer experiencing lag issues

Can too many devices slow my network?

Yes. Each device uses some bandwidth even when idle. Most home routers handle 20-30 devices well, but performance can degrade with 50+ devices (common in smart homes).

Conclusion: Building Your Network Knowledge

Networking might seem complex, but it follows logical principles. Start with understanding the basics, then gradually add complexity as your needs grow. The key is hands-on experience—don't be afraid to experiment and make mistakes.

Your networking journey:

Phase 1: Master the basics (IP addresses, Wi-Fi setup, basic troubleshooting) Phase 2: Optimize performance (QoS, channel selection, security hardening)
Phase 3: Advanced projects (VLANs, home lab, self-hosted services) Phase 4: Enterprise concepts (monitoring, automation, advanced security)

Remember: Good network design grows with you. Start simple, document changes, and expand systematically. The networking skills you learn will serve you well whether you're troubleshooting at home or building a career in IT.

Keep learning: Join networking communities, follow tech blogs, and most importantly—keep experimenting. Every problem you solve makes you more confident for the next challenge.

Ready to level up your home network? Check out our related guides on building a Pi-hole for network-wide ad blocking, setting up a personal VPN server, and creating a home NAS for centralized storage!
